在线离线TOC分析仪厂家 总有机碳分析仪是北京北广精仪公司自主研发的高精度总有机碳分析仪器。产品使用电导率差值检测技术，检测精度高，响应时间短。产品符合国家法规和标准，可满足制药用水、注射用水、超纯水和去离子水的在线及离线的检测要求。
在线离线TOC分析仪厂家
一.工作原理
本仪器采用紫外氧化的原理，将样品中的有机物氧化为二氧化碳，二氧化碳的测试采用的是直接电导率法，通过测试经过氧化反应的样品的总碳含量和未经过氧化反应的样品总无机碳的含量差值来测定总有机碳含量，即：总有机碳（TOC）=总碳（TC）-总无机碳（TIC）。
二.产品特点
1.仪器采用便携设计，使用轻便，方便移动至取样点。

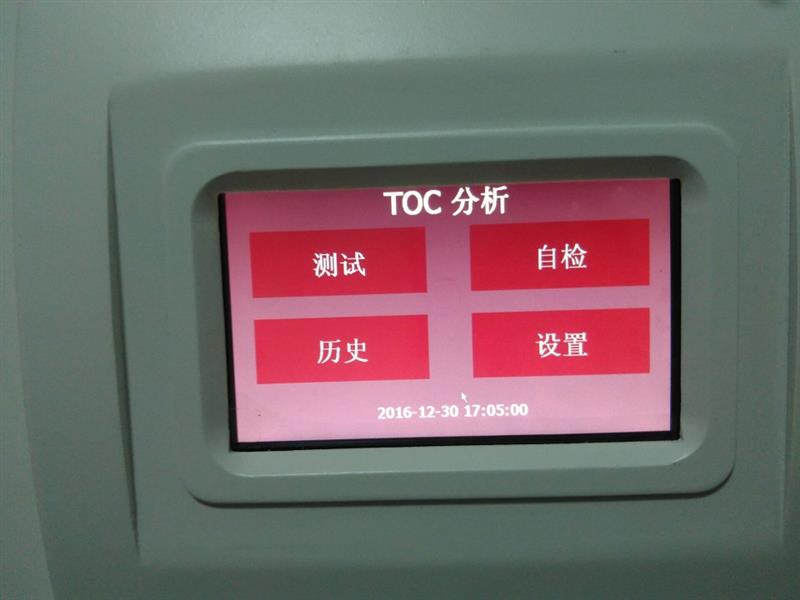

2.采用嵌入式系统，触摸屏设计，纯中文操作方便简易。
3.针对制药用水（TOC含量在1000ppb以下）总有机碳含量的检测设计，进行检测。
4.配备大量的储存空间，能够存储大量的测试数据。
5.中文打印，输出测试参数、测试结果。
6.在使用、贮存和更换过程中不需要气体或试剂，无移动部件，减少维修和维护成本。
7.当测试样品浓度超过规定限度，仪器能够自动报警，并输出控制信号。
8.符合国家《中国药典》 CP2010规定的测试方案，可以提供 IQ/OQ/PQ 服务。
三.性能规格:
测量范围：0.001mg/L～1.0mg/L（传感器可定制，浓度可调节最达到1000mg/L，根据式样要求传感器定制调节到某一段浓度范围）
精度：±4% 测试范围
分辨率：0.001mg /L
分析时间：连续分析
响应时间：4分钟之内
检测极限：0.001mg /L
样品温度：1- 95℃
重复性误差：≤ 3%
电源要求/功能：220V
显示屏：彩色触摸屏
四.应用领域：
制药用水（纯化水、注射用水）的在线监测和实验室测试，以及清洁验证；环保测试、电子行业、食品行业等。
产品说明:
总有机碳（TOC）分析仪采用世界先进的双波长红外外氧化技术，精度高、灵敏度高。高性能CPU，触摸屏智能化控制，具有离线分析和在线分析选配功能，配制外置式打印机，人性化的设计理念，更换UV灯和泵管不用拆开机箱，操作简单、方便，实现了分析仪器国产化。符合《中国药典》2010版附录VIII R制药用水中总有机碳测定法，满足药典对仪器的要求：①TOC=TC-TIC，②系统适用性试验，③检测灵敏度（等于或小于0.001mg/L）。
五.主要特征:
1、高精度、高灵敏度，操作简单。
2、人性化操作界面，有一键运行功能，自动管路清洗功能。
3、高性能CPU，触摸屏设计，超大640*480点阵真彩显示器。
4、不用拆开机箱更换UV灯和泵管。
5、检测上限可设定，自动上限报警功能。
6、具有RS232数据接口，历史数据可存储6个月。
7、离线检测和在线检测可选配。
8、具有打印功能
六.主要配置
主机 一台
触摸屏 （镶嵌到仪器中）
微型打印机 一台
进样管 一条
电源线 一套
产品说明书 一份
产品合格证 一份
产品装箱单 一份
The total organic carbon analyzer is a high-precision total organic carbon analysis instrument independently developed by Beijing Beiguang Jingyi Company. The product uses conductivity difference detection technology, which has high detection accuracy and short response time. The product complies with national regulations and standards, and can meet the online and offline testing requirements for pharmaceutical water, injection water, ultrapure water, and deionized water.
One Working principle
This instrument adopts the principle of ultraviolet oxidation to oxidize organic matter in the sample into carbon dioxide. The direct conductivity method is used to test the carbon dioxide content. The total organic carbon content is determined by measuring the difference between the total carbon content of the sample that has undergone oxidation reaction and the total inorganic carbon content of the sample that has not undergone oxidation reaction, that is, total organic carbon (TOC)=total carbon (TC) - total inorganic carbon (TIC).
II Product Features
1. The instrument adopts a portable design, which is easy to use and convenient to move to the sampling point.
2. Adopting an embedded system and touch screen design, pure Chinese operation is convenient and easy.
3. Design and conduct testing for the total organic carbon content of pharmaceutical water (TOC content below 1000ppb).
4. Equipped with a large amount of storage space, capable of storing a large amount of test data.
5. Print in Chinese and output test parameters and results.
6. No gas or reagents are required during use, storage, and replacement, and there are no moving parts, reducing maintenance and repair costs.
When the concentration of the test sample exceeds the specified limit, the instrument can automatically sound an alarm and output a control signal.
8. According to the testing plan specified in the Chinese Pharmacopoeia CP2010, IQ/OQ/PQ services can be provided.
III Performance specifications:
Measurement range: 0.001mg/L~1.0mg/L (The sensor can be customized, and the concentration can be adjusted up to 1000mg/L. The sensor can be customized and adjusted to a certain concentration range according to the style requirements)
Accuracy:±4% Test range
Resolution: 0.001mg/L
Analysis time: continuous analysis
Response time: within 4 minutes
Detection limit: 0.001mg/L
Sample temperature: 1-95℃
Repetitive error:≤3%
Power requirement/function: 220V
Display screen: Color touch screen
4 Application fields:
Online monitoring and laboratory testing of pharmaceutical water (purified water, injection water), as well as cleaning validation; Environmental testing, electronics industry, food industry, etc.
Product Description:
The total organic carbon (TOC) analyzer adopts the world's advanced dual wavelength red external oxidation technology, with high accuracy and sensitivity. High performance CPU, touch screen intelligent control, with offline analysis and online analysis optional functions, equipped with an external printer, humanized design concept, no need to open the chassis to replace UV lamps and pump tubes, simple and convenient operation, realizing the localization of analytical instruments. Complies with Appendix VIII R of the Chinese Pharmacopoeia 2010 edition for the determination of total organic carbon in pharmaceutical water, meeting the requirements of the Pharmacopoeia for instruments:①TOC=TC-TIC,②system suitability test,③detection sensitivity (equal to or less than 0.001mg/L).
Five Main features:
1. High precision, high sensitivity, and easy operation.
2. Humanized operation interface, with one click operation function and automatic pipeline cleaning function.
3. High performance CPU, touch screen design, ultra large 640 * 480 dot matrix true color display.
4. No need to open the chassis to replace the UV lamp and pump tube.
5. The detection upper limit can be set, and the automatic upper limit alarm function.
6. Equipped with RS232 data interface, historical data can be stored for 6 months.
7. Offline detection and online detection are optional.
8. Equipped with printing function
VI Main configuration
One host
Touch screen (embedded in the instrument)
One micro printer
One injection tube
A set of power cords
One copy of product manual
One copy of product qualification certificate
Product packing list copy
