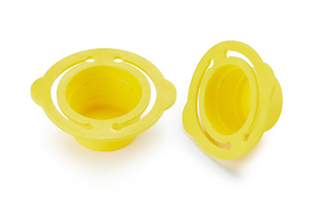

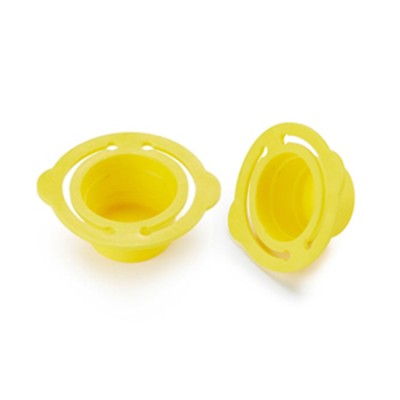

带拉环锥形盖塞
黄色LDPE
Tapered Plug with Ring Tab
可以作为盖子和塞子使用

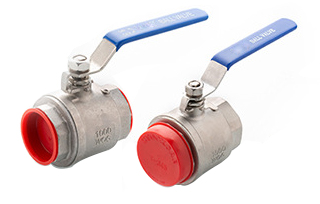

适用于外螺纹和内螺纹的保护
提供在存储和运输中防尘, 防潮和防腐保护

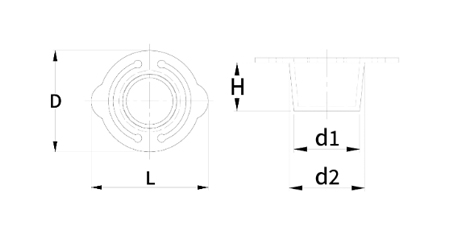

| 编号 | L | D | d2 | d1 | H |
| HLHZX001 | 17.3 | 9.5 | 7 | 5 | 11 |
| HLHZX002 | 18.2 | 9.5 | 8 | 6 | 11 |
| HLHZX003 | 20.3 | 9.5 | 9.5 | 7 | 11 |
| HLHZX004 | 20.3 | 9.5 | 10 | 8 | 11 |
| HLHZX005 | 21.9 | 9.5 | 11.5 | 9.5 | 11 |
| HLHZX006 | 22.6 | 9.5 | 12.5 | 10.5 | 11 |
| HLHZX007 | 23.7 | 9.5 | 13.5 | 11.5 | 11 |
| HLHZX008 | 24.5 | 10 | 14.5 | 12.5 | 11.5 |
| HLHZX009 | 25.5 | 10 | 15.5 | 13.5 | 11.5 |
| HLHZX010 | 26.3 | 10 | 16.2 | 14.2 | 11.5 |
| HLHZX011 | 27 | 10 | 17 | 14.5 | 11.5 |
| HLHZX012 | 28.3 | 10 | 18 | 15.5 | 11.5 |
| HLHZX013 | 30 | 10 | 19.5 | 17.5 | 11.5 |
| HLHZX014 | 30 | 10 | 20 | 18 | 11.5 |
| HLHZX015 | 32 | 11 | 21.5 | 19 | 12.5 |
| HLHZX016 | 34.7 | 11 | 24.2 | 21 | 12.5 |
| HLHZX017 | 36 | 12 | 25.5 | 22.5 | 13.5 |
| HLHZX018 | 38.5 | 12 | 28 | 25 | 13.5 |
| HLHZX019 | 41.8 | 12 | 31.5 | 29 | 13.5 |
| HLHZX020 | 42.5 | 12 | 32 | 29.5 | 13.5 |
